Tool Presets

What are tool presets?

In storyboard, you only need a handful of tools, each with a specific use.
The tool presets are like macros to set Blender tools with specific options in one action.
Each one is defined through a shortcut and appears as a button in the Tool preset topbar in the upper part of the viewport.

You can hide the topbar in the add-on preferences (the shortcuts will remain valid).
Topbar margin and spreading can also be adjusted in preferences.

Anatomy of a tool preset

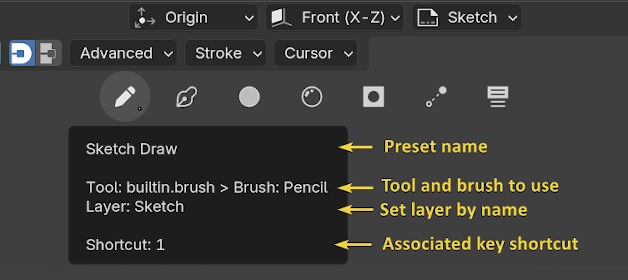

By hovering with the mouse, you can see what is affected in the tooltip. Example with the Sketch default tool preset:

Clicking on it will: - Set the Draw tool (from left Toolbar) - set the brush named Pencil - Change layer to the one named Sketch (if it exists in stack)

Default tools presets and their shortcut

Note: The default tools are subject to change in future versions.

Default tools presets are associated with keyboard top row number keys and sorted by key order.

1 : Sketch Draw -> draw tool, brush Pencil, layer Sketch
2 : Line Draw -> draw tool, brush Ink Pen, layer Line
3 : Bucket Fill -> Bucket Fill tool, no brush, layer Color
4 : Lasso Fill -> draw tool, Bucket Fill tool, no brush, layer Color
5 : Eraser Point -> Eraser tool, brush Eraser Point
6 : Eraser Stroke -> Eraser tool, brush Eraser Stroke

Properties of a tool preset

A tool preset can define :

name: Name of the tool preset used as identifier

layer: Layer name to swap to, if exists
material: Material to swap to, if exists
tool: Identifier of the tool to use
brush: Name of the brush to use within tool
icon: Icon to display
show: Display the preset as button in preset bar interface (if hidden, the shortcut remains)

Preset customization

In addon preferences of storytools go to the Tool presets tab

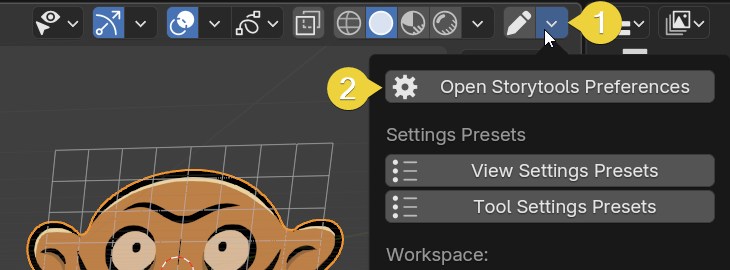

Tips: To quickly open addon prefererence, use viewport's top-right corner setup menu:

Here you can disable, inspect or modify the default tool presets

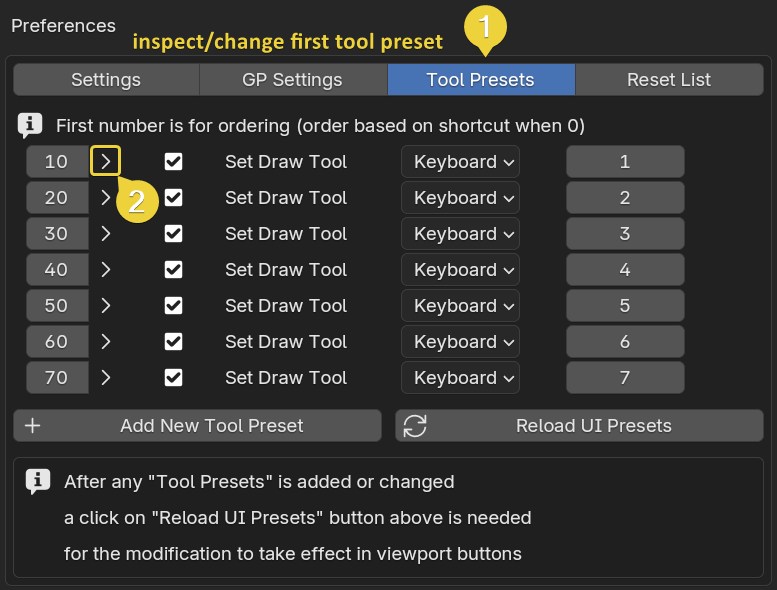

Let's inspect the first default shortcut, unfold shortcut options with arrow next to ordering number:

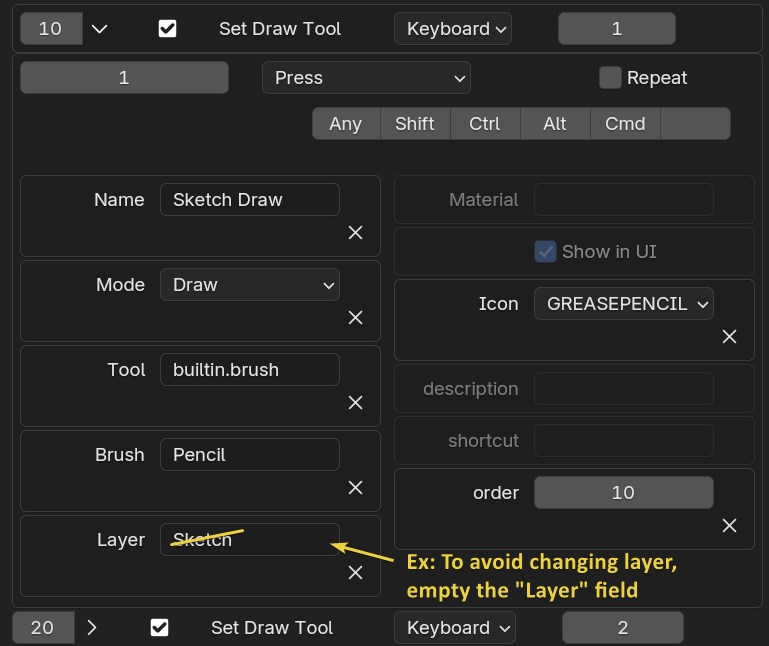

Let's say we don't want to change the active layer when using this toolpreset

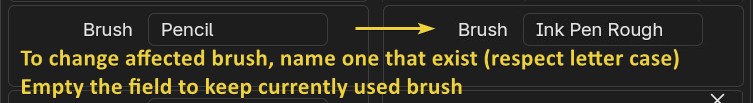

Same goes for the Brush name: for example you prefer the "Ink Pen Rough"

The panel list all related shortcuts (using the operator storytools.set_draw_tool), those are registered in keymaps under Grease Pencil > Grease Pencil Stroke paint mode.

You can add other shortcut directly from the preference. Use existing presets as examples to customize the behavior.

Lastly, remember this list is just the shortcuts and UI buttons are generated from those.
When you change something, you need to click on the Reload UI button to make the changes effective in the interface buttons.
