Storyboard template generator

All related features are located in the setup menu

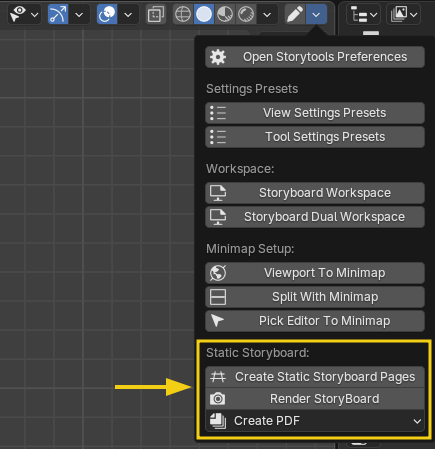

Storyboard Setup Menu

Create static storyboard

Generate the pages and grid according to your needs.

First, launch Create Static Storyboard Pages operator.
It's recommanded to do that in an empty scene and disable autokey.

Then use the Redo panel to customize the grid layout.

Note: The Redo Panel show is visible at viewport's bottom left or pop up by pressing F9 key.

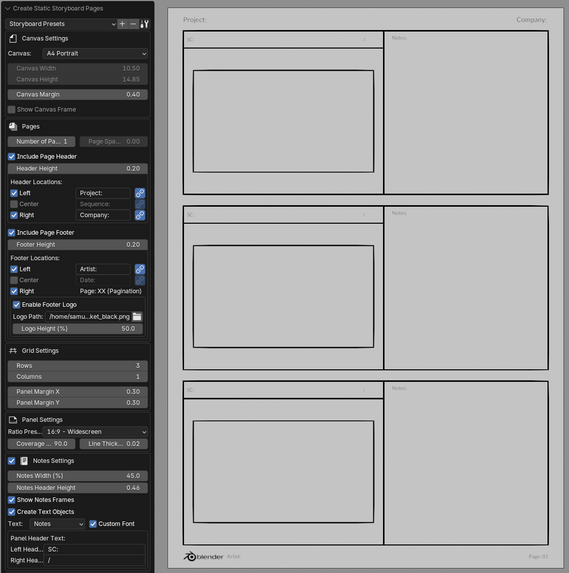

Redo panel and default grid

Generation workflow:

  1. At the top of the redo panel, select a preset that is close to what you need

The first time you use it, you will see a red button to add a set of default presets.

Default presets menu

Example of the A4 portrait defaut layout:

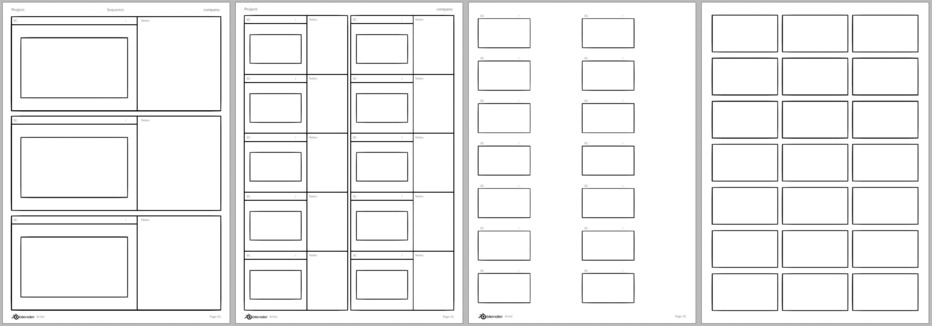

Template presets

  1. Fine tune the grid layout with all options to make it fit your need.

For performance it's recommanded keep the page number at 1 during the customization, then set the number of pages at the end.

  1. If you are satisfied with the layout, you can save the settings as a new template using the + button at the right of the presets

Add more page on an existing storyboard

If you did not put enough pages and just want more:

  1. Select your object and run Create Static Storyboard Pages again (settings should be restored as they were to create this specific Grease pencil object)

  2. By default, it erase previous elements, in this case where you already have notes and drawing, uncheck Remove Pre-generated Elements at the bottom of panel.

  3. Add more page in the input

Rendering

Once you are finished, use the setup menu again and use the Render Storyboard button.
Before launching the render you will see a popup with some settings to prepare for the final rendering, including output path.

Making a pdf file

The last button in the setup menu allow to create a pdf from the rendered images to easily share your storyboard with the world.
You have the option to either use all the images in the rendering folder or popup an explorer window to select the images to include. Pdf will open after the creation is finished.

Note: It will ask you to install the required module the first time.
